Isol

  /    /  Isol

Isol

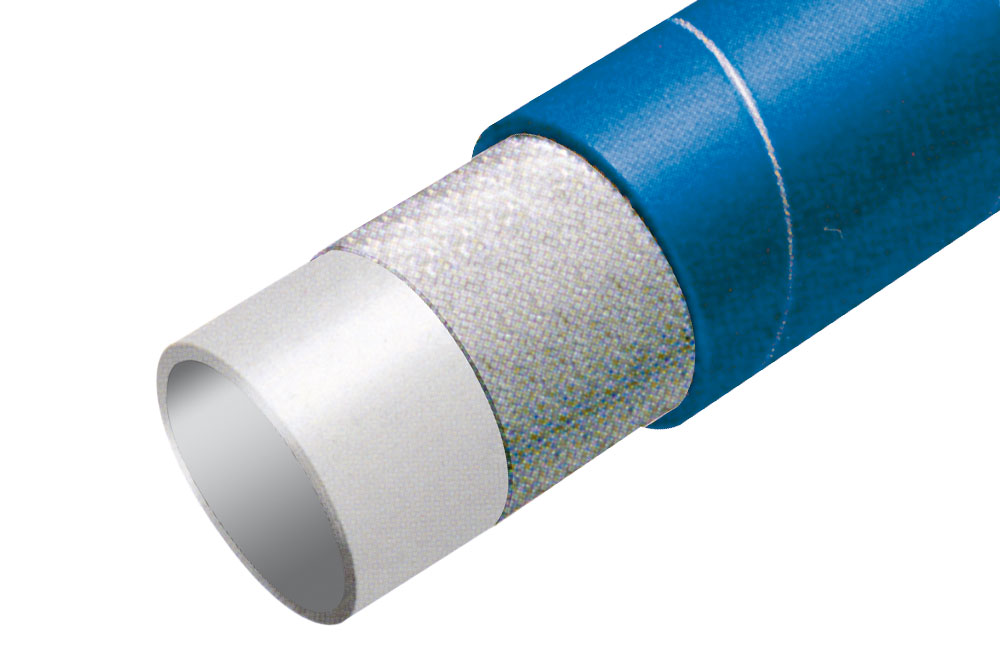

Inner tube: White smooth EPDM rubber, electrically isolated, suitable for high temperature.
Reinforcement: Synthetic high strength cord.
Cover: Blue EPDM rubber, electrically isolated, abrasion resistance, suitable for high temperature and ozone resistance.

Temperature range: -40° +120°.

isol
Diametro nominale
Nominal Bore

Diametro interno
Inside diameter

Diametro esterno
Over cover diameter

Pressione di esercizio
Working Pressure

Pressione di scoppio
Burst Pressure

Raggio minimo di curvatura
Minimum Bend Radius

Peso unitario
Unit Weight


DN

mmmminchmmbarpsibarpsimmKg/mt
10102020290608600,34
12122120290608600,38
15152420290608600,42
18182820290608600,52
19192920290608600,54
20203020290608600,56
25253520290608600,62
30304220290608600,90
32324420290608600,95
35354820290608601,14
40405420290608601,46
45456120290608602,00
50506820290608602,36

APPLICATION

For delivery of cooling water in the induction furnace used in steel mills.

AVAILABLE COVERINGS

A- Galvanized and stainless steel braids
B- Fiber glass braid + red silicone
C- Fiber glass braid
D- Textile protective braid

rivestimenti
