PTFE Convoluted hose

PTFE Convoluted Hose

Inner tube: Convoluted PTFE.

Reinforcement: 1 stainless steel braid AISI 304.

Temperature range: -60° +260°

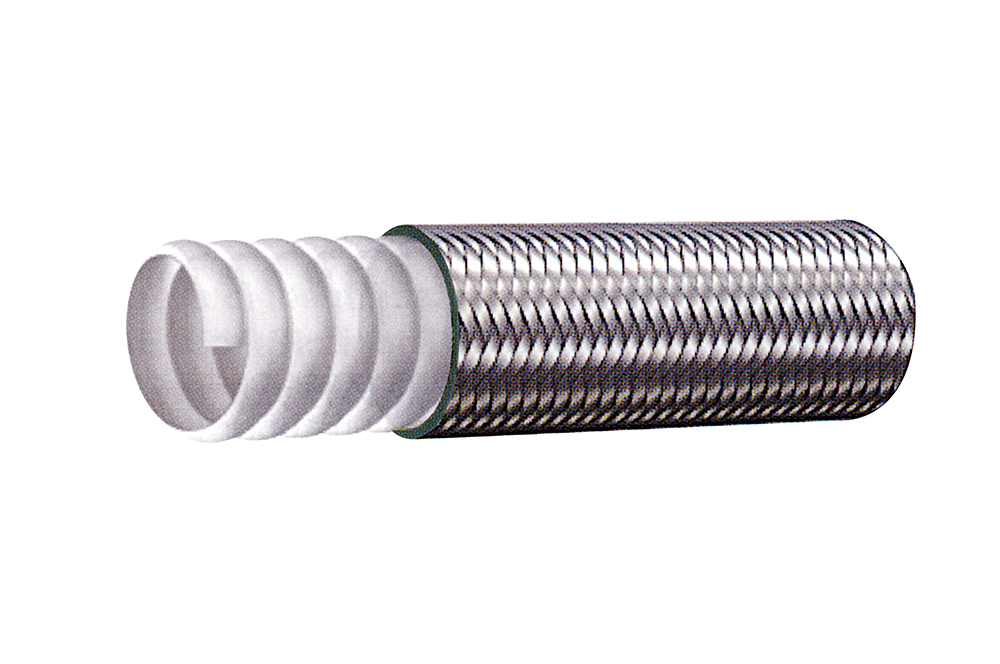

PTFE CORRUGATO -pag. 86
Diametro nominale
Nominal Bore

Diametro interno
Inside diameter

Diametro esterno
Over cover diameter

Pressione di esercizio
Working Pressure

Pressione di scoppio
Burst Pressure

Raggio minimo di curvatura
Minimum Bend Radius

Peso unitario
Unit Weight


DN

mmmminchmmbarpsibarpsimmKg/mt
5,955,951/4”9,1417224425177340180,140
7,757,755/16”12,1913819604145880200,160
8,998,993/8”12,9513819604145880220,212
12,4512,451/2”18,1610314603104400250,253
15,3715,375/8”21,598311802483520510,304
18,5418,543/4”246913602072940640,374
21,8421,847/8”27,94578101722440760,460
24,8924,891”32,13466551381960890,543
31,9531,951”1/440,213448010314601250,653
39,1239,121”1/249,02304309012801520,840
49,9149,912”59,1823325699802001

APPLICATION

Compressed air, gas, steam, combustibles, oils, chemical, alimentary and pharmaceutical products.

AVAILABLE COVERINGS

A- Galvanized and stainless steel braids
B- Fiber glass braid + red silicone
C- Fiber glass braid
D- Textile protective braid

rivestimenti
