SAE 100 R15

  /    /  SAE 100 R15

SAE 100 R15

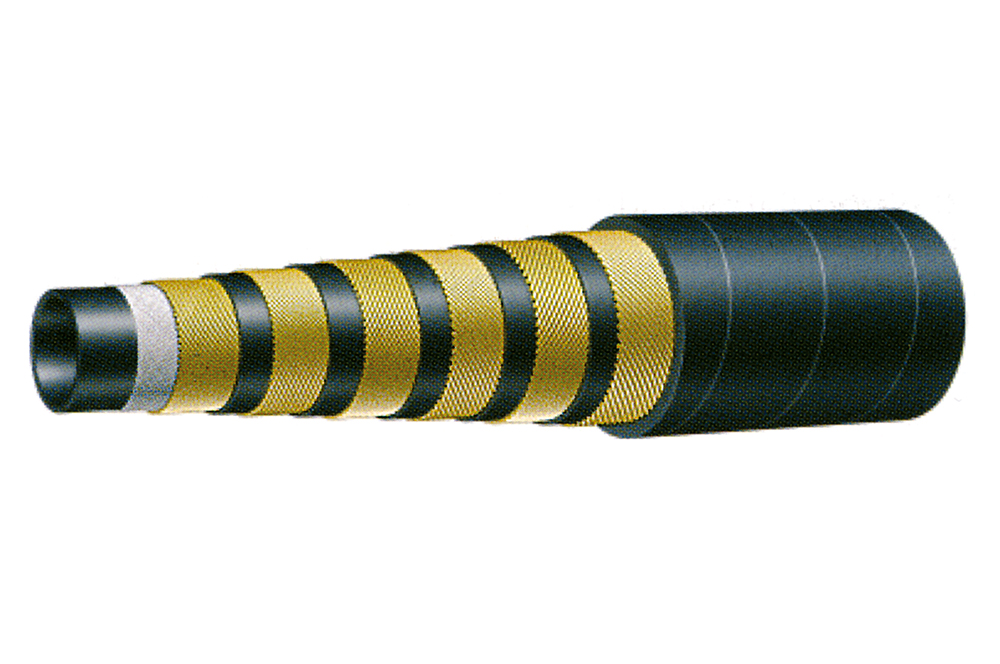

Inner tube: Oil resistant synthetic rubber.

Reinforcement: 4/6 high tensile steel spirals.

Cover: Abrasion, weather, ozone and oil resistant synthetic rubber.

Temperature range: – 40° +100° with peak of  125°

PDF Technical Sheet
PDF Corrosion Resistance
EN 856 R12-pag.74
EN 856 R13-pag.75
Diametro nominale
Nominal Bore

Diametro interno
Inside diameter

Diametro esterno
Over cover diameter

Pressione di esercizio
Working Pressure

Pressione di scoppio
Burst Pressure

Raggio minimo di curvatura
Minimum Bend Radius

Peso unitario
Unit Weight


DN
mmmminchmmbarpsibarpsimmKg/mt
661/4”17,945065501800262001500,580
10103/8”21,444564501780258001800,740
13131/2”24,642060001660240002300,880
16165/8”28,642060001680240002501,320
19193/4”32,242060001680240002671,620
25251”38,742060001680240002802,200
32311”1/449,842060001680240002803,590
38381”1/257,342060001680240003155,000
51512”7242060001680240006007,080

APPLICATION

Hydraulic mineral and “biological” oils, polyglycol base oils, water, oil/water emulsions.

AVAILABLE COVERINGS

A- Galvanized and stainless steel braids
B- Fiber glass braid + red silicone
C- Fiber glass braid
D- Textile protective braid

rivestimenti
