Steam 210

Steam 210

Inner tube: Black, smooth, EPDM rubber, resistant to saturated steam.

Reinforcement: Insert of steel wire.

Cover: Black / red, pin pricked, smooth (wrapped fi nish), EPDM rubber with excelent resistance to high temperatures, weathering, abrasion and ageing.

Temperature range: -40° +210°

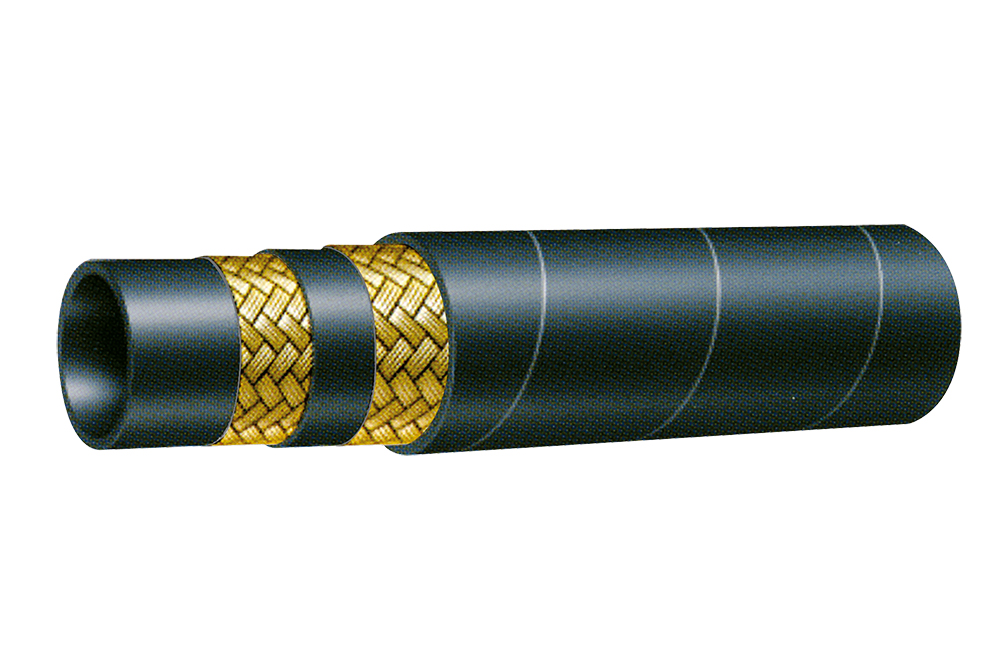

VAPORE210-pag.91
Diametro nominale
Nominal Bore

Diametro interno
Inside diameter

Diametro esterno
Over cover diameter

Pressione di esercizio
Working Pressure

Pressione di scoppio
Burst Pressure

Raggio minimo di curvatura
Minimum Bend Radius

Peso unitario
Unit Weight


DN

mmmminchmmbarpsibarpsimmKg/mt
10103/8”211827018027000,36
13131/2”251827018027000,49
16165/8”281827018027000,57
19193/4”311827018027000,64
25251”371827018027000,87
32321”1/446,51827018027001,27
38381”1/2561827018027002,18
51512”66,51827018027002,27
63,563,52”1/281,51827018027003,33
76763”96,51827018027004,34

APPLICATION

Steel cord hose for saturated steam at a maximum working pressure 18 bar (261 psi), used in the chemical industry, petrochemical and industrial applications in general. Not recommended for steam cleaner. The hose can be used for peaks of superheated steam at 230°C and 18 bar. Attention: the use of superheated steam reduces the hose life. For longer life drain after use.

AVAILABLE COVERINGS

A- Galvanized and stainless steel braids
B- Fiber glass braid + red silicone
C- Fiber glass braid
D- Textile protective braid
