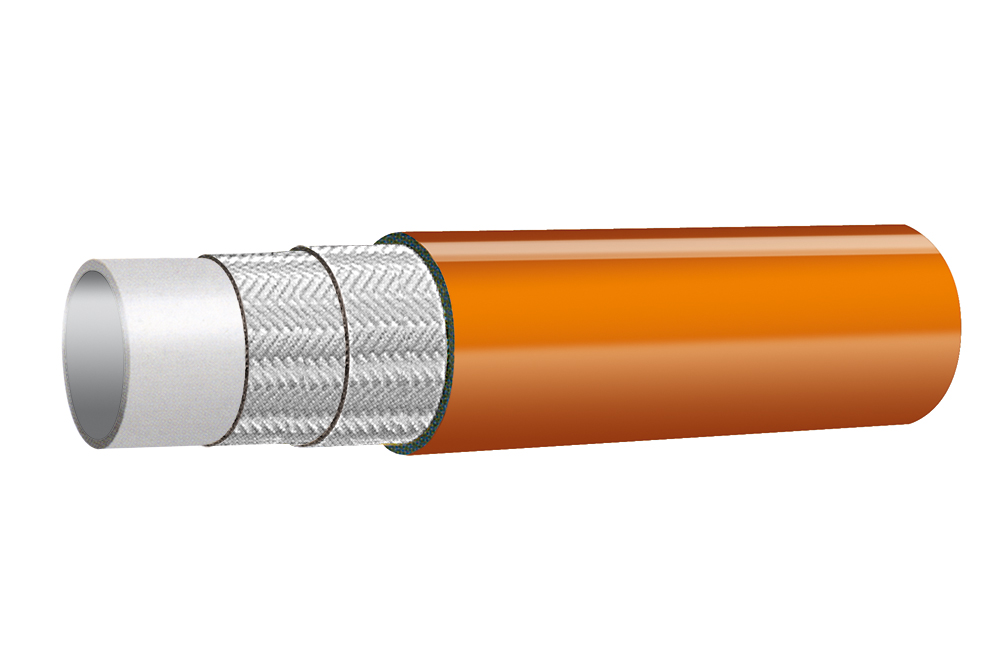

SAE 100 R7 non conductive

SAE 100 R7 non conduttivo

Inner tube: Polyester elastomer.

Reinforcement: 1/2 braids of synthetic fi ber.

Cover: Polyurethane, orange, non pinpricked, black ink-jet branding.

Temperature range: -40° +100° / 70° for air and water based flids

Sae100r7arnc Pag.80
ninja_column_16
Diametro nominale
Nominal Bore

Diametro interno
Inside diameter

Diametro esterno
Over cover diameter

Pressione di esercizio
Working Pressure

Pressione di scoppio
Burst Pressure

Raggio minimo di curvatura
Minimum Bend Radius

Allungamento
Elongation

Peso unitario
Unit Weight


DN

mmmminchmmbarpsibarpsimmKg/mt
441/8”8,321030008401200025±1,5%0,05
553/16”9,621030008401200025±1,5%0,06
6,506,501/4”12,221030008401200035±1,5%0,10
8,108,105/16”14,319027007601080045±1,5%0,13
9,709,703/8”161602300640920055±1,5%0,15
13131/2”20,31402000560800075±1,5%0,22
16,3016,305/8”23,710515004206000110±1,5%0,28
19,5019,503/4”27,19013003605200140±1,5%0,335
25,9025,901”347010002804000190±1,5%0,445

APPLICATION

High voltage equipment, safety and rescue equipment, aerial platform, cranes, equipment requiring electrical high insulation.

AVAILABLE COVERINGS

A- Galvanized and stainless steel braids
B- Fiber glass braid + red silicone
C- Fiber glass braid
D- Textile protective braid
