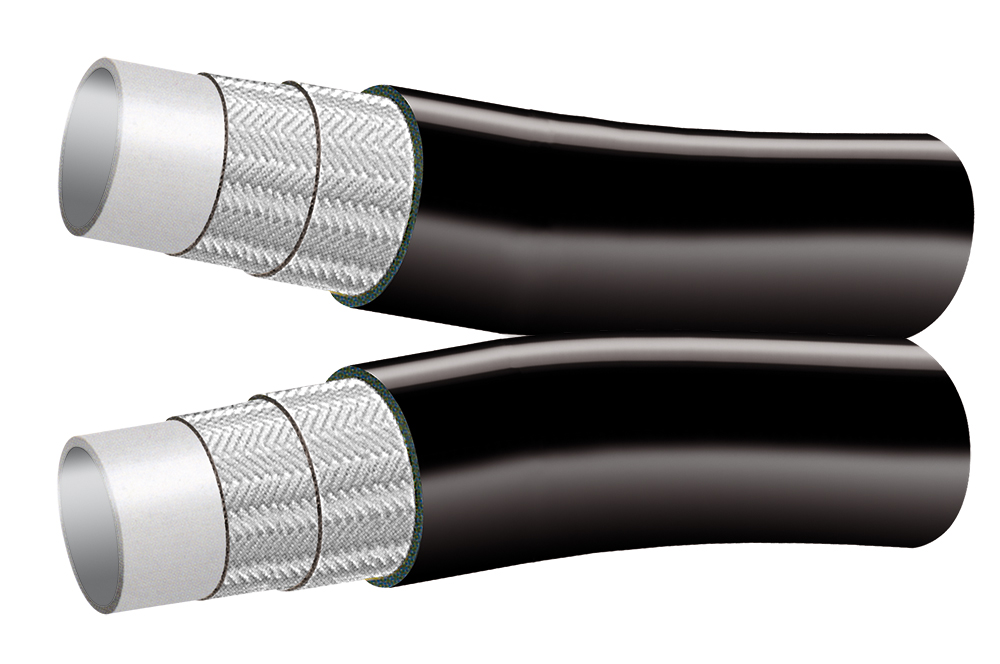

SAE 100 R7 Twin

SAE 100 R7 Binato

Inner tube: Polyester elastomer.

Reinforcement: 1/2 braids of synthetic fi ber.

Cover: Polyurethane, black, pinpricked, white ink-jet branding.

Temperature range: -40° +100° / 70° for air and water based fl ids

Sae100r7nerobin Pag.79
ninja_column_16
Diametro nominale
Nominal Bore

Diametro interno
Inside diameter

Diametro esterno
Over cover diameter

Pressione di esercizio
Working Pressure

Pressione di scoppio
Burst Pressure

Raggio minimo di curvatura
Minimum Bend Radius

Allungamento
Elongation

Peso unitario
Unit Weight


DN

mmmminchmmbarpsibarpsimmKg/mt
441/8”8,321030008401200025±1,5%0,10
553/16”9,621030008401200025±1,5%0,12
6,506,501/4”12,221030008401200035±1,5%0,20
8,108,105/16”14,319027007601080045±1,5%0,26
9,709,703/8”161602300640920055±1,5%0,30
13131/2”20,31402000560800075±1,5%0,44
16,3016,305/8”23,710515004206000110±1,5%0,56
19,5019,503/4”27,19013003605200140±1,5%0,67
25,9025,901”347010002804000190±1,5%0,89

APPLICATION

Forklift trucks, articulating and telescopic booms, aerial platforms, scissor lifts, cranes, general hydraulics, industrial gases.

AVAILABLE COVERINGS

A- Galvanized and stainless steel braids
B- Fiber glass braid + red silicone
C- Fiber glass braid
D- Textile protective braid
